Overfill Prevention Equipment

The State Water Board Evaluation staff utilizes the UST Facility/Tank Data Download to assess whether the CUPA is accepting CERS submittals with incorrectly reported overfill protection methods. The CUPA should verify the following when reviewing over the Overfill Protection Section under Tank Construction on the Tank Information page:

  • The correct overfill protection is being marked based on the UST installation date and construction
  • The overfill protection method cited in CERS matches the method used on the Overfill Prevention Equipment Inspection Report Form

For more information on overfill prevention equipment, refer to LG 150-3.

UST Facility/Tank Data Download – Overfill Prevention Data Analysis

How to obtain and set up the report from CERS

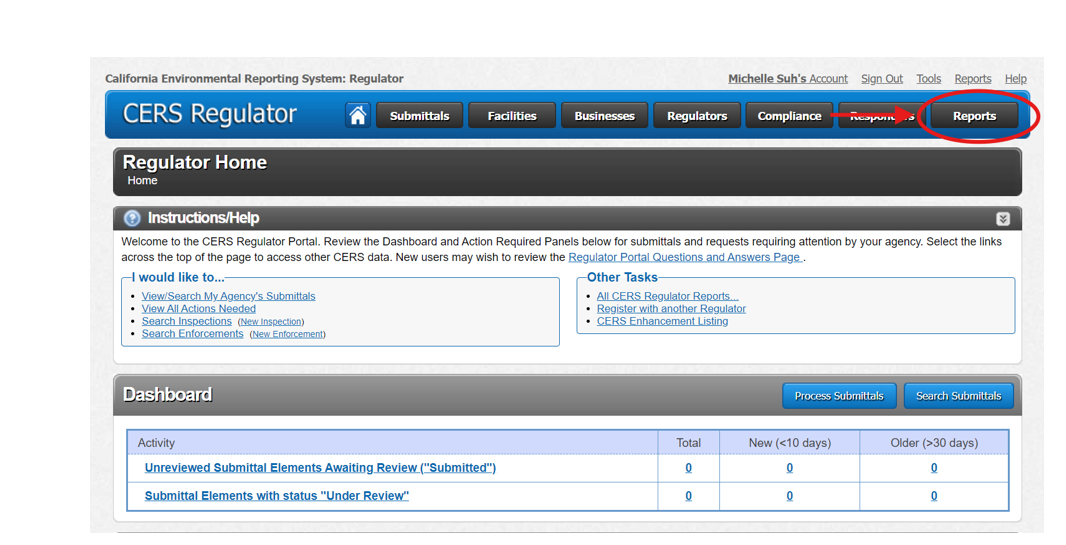

1. Log into CERS and go to Reports

Screenshot of the CERS Regulator home page with a red arrow pointing to 'Reports' in the top navigation menu, highlighted by a red circle.

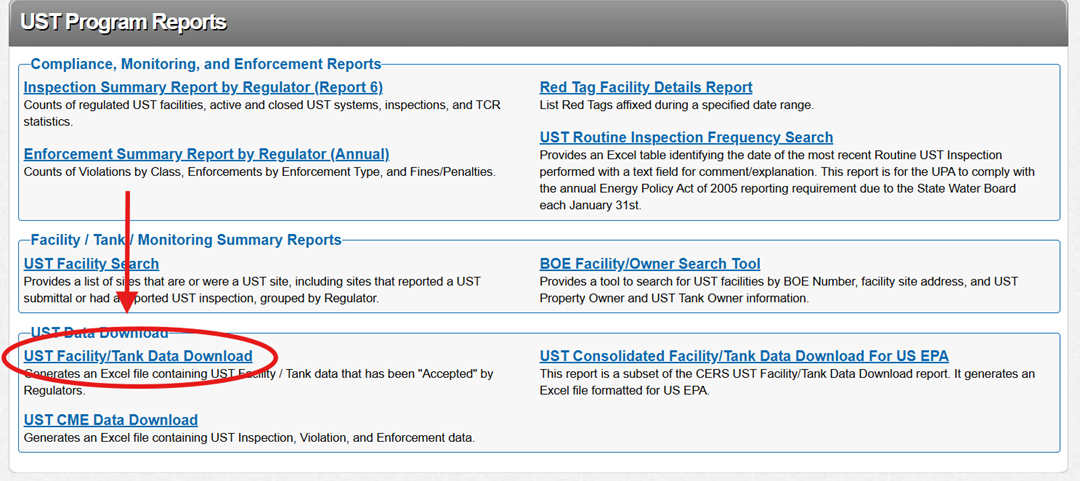

2. Select UST Facility/Tank Data Download

Screenshot of the CERS Regulator Reports page with a red arrow pointing to the 'UST CME Data Download' in the UST Program Reports section, highlighted by a red circle

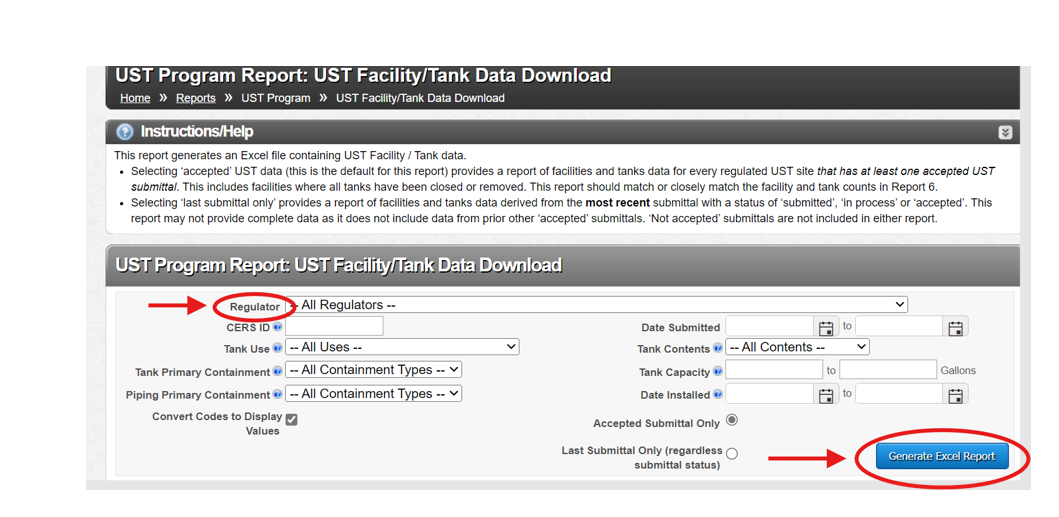

3. Select the jurisdiction from the Regulator drop down and select Generate Excel Report. An Excel document will be downloaded to your computer.

Screenshot of the UST Facility/Tank Data Download page with a red arrow pointing to 'Regulator' and 'Generate Excel Report', which are both highlighted by a red circle

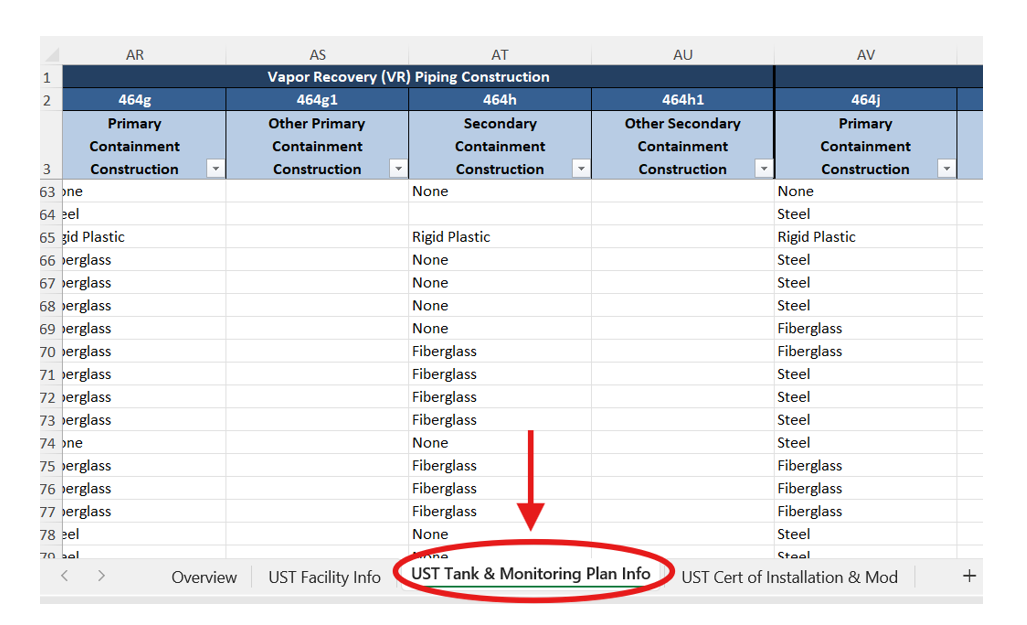

4. Open the excel document and go to the UST Tank & Monitoring Plan Info tab

Screenshot of the UST Facility/Tank Data Download excel report with a red arrow pointing to the 'UST Tank and Monitoring Plan Info' tab, highlighted by a red circle

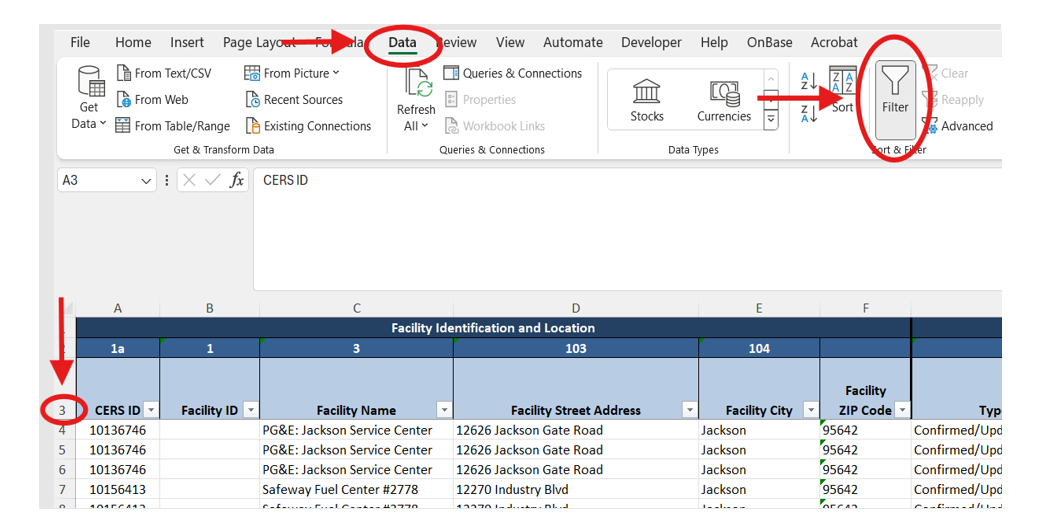

5. Select row 3 (highlight entire row), go to the Data tab at the top, and then select Filter. You should now see a drop-down arrow (for filtering) in each of the columns.

Screenshot of the 'UST Tank and Monitoring Plan Info' tab with a red arrow pointing to 'Row #3', 'Data ribbon tab' at the top, and 'Filter' function, all highlighted by a red circle

How to filter the data

1. Find column 435 (Date UST Installed) and filter for the following:

  1. 1/1/1984 through 7/1/2003
  2. Include 1/1/1900
Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red circle highlighting 'Column 435' which is named 'Date UST System Installed' and the dates shown in the drop down list of column 435

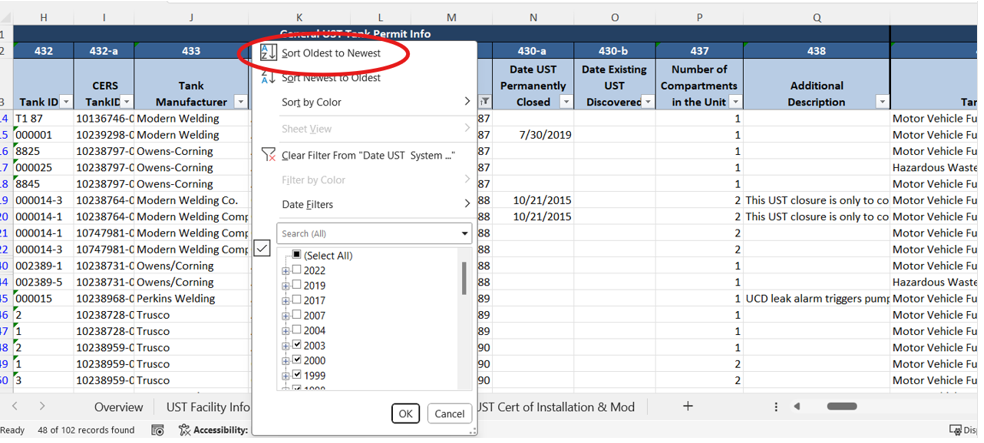

2. Filter column 435 and sort Oldest to Newest.

Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red circle highlighting the 'Sort Oldest to Newest' for filtering data in column 435

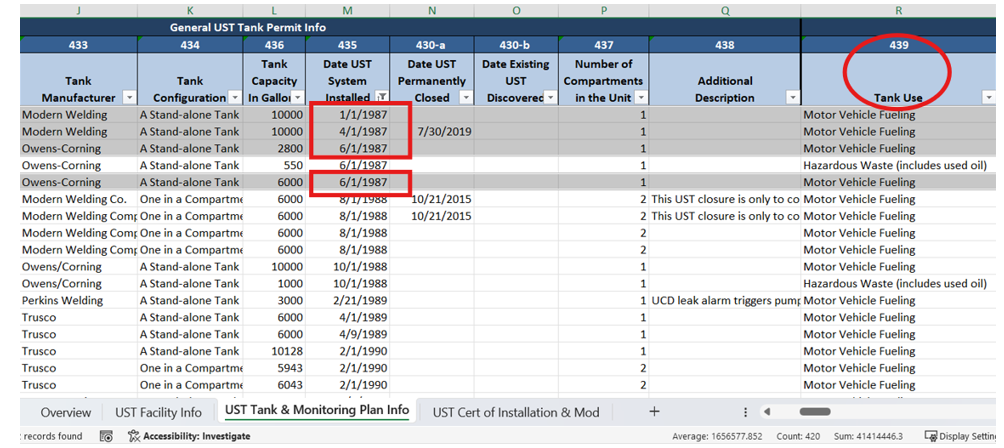

3. Find column 439 (Tank Use) and deselect any Motor Vehicle Fueling that is pre-July 1987 (under column 439)

Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red circle highlighting 'Column 439' named 'Tank Use' and red boxes highlighting any pre-July 1987 dates in column 435

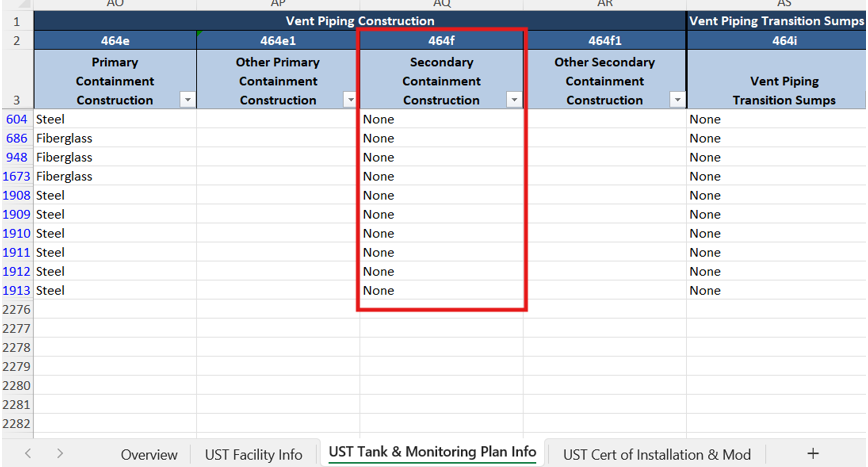

4. Find column 464f (Vent Piping Construction) and filter for None. This identifies UST systems with single-walled vent piping.

Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red box highlighting '464f' named 'Secondary Containment Construction'. The data has been filtered to show column 464f with 'None'

5. Find columns 452a (Audible/Visual Alarms), 452b (Ball Float), 452c (Fill Tube Shut-Off Valve), and 452d (Exempt) and filter for the following

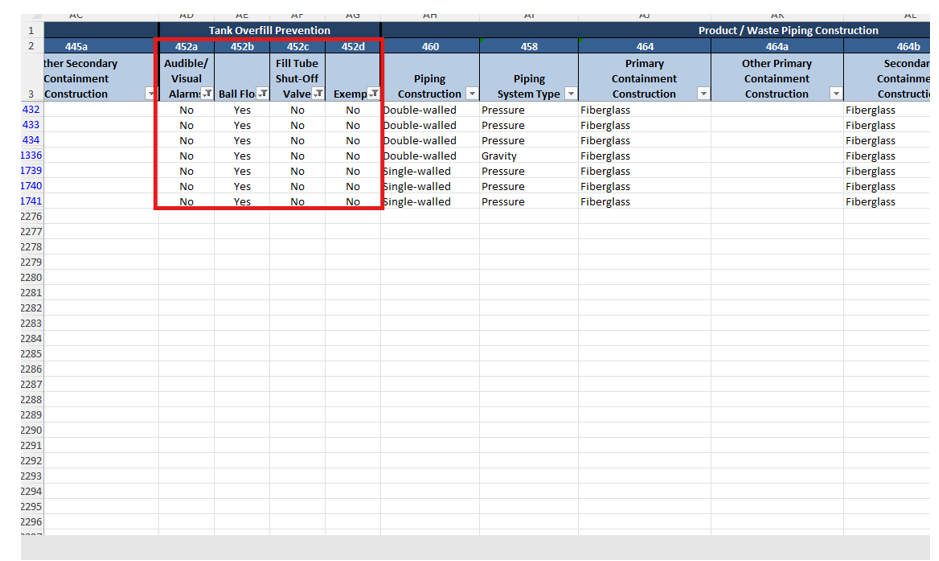

  1. USTs citing Ball Float only:
    1. 452a: No
    2. 452b: Yes
    3. 452c: No
    4. 452d: No
Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red box highlighting 'Columns 452a named Audible/Visual Alarm, 452b named Ball Float, 452c named Fill Tube Shut-off Valve, and 452 named Exempt'. The data has been filtered to show Audible/Visual with 'No', Ball Float with 'Yes', Fill Tube Shut-off valve with 'No', and Exempt as 'No'

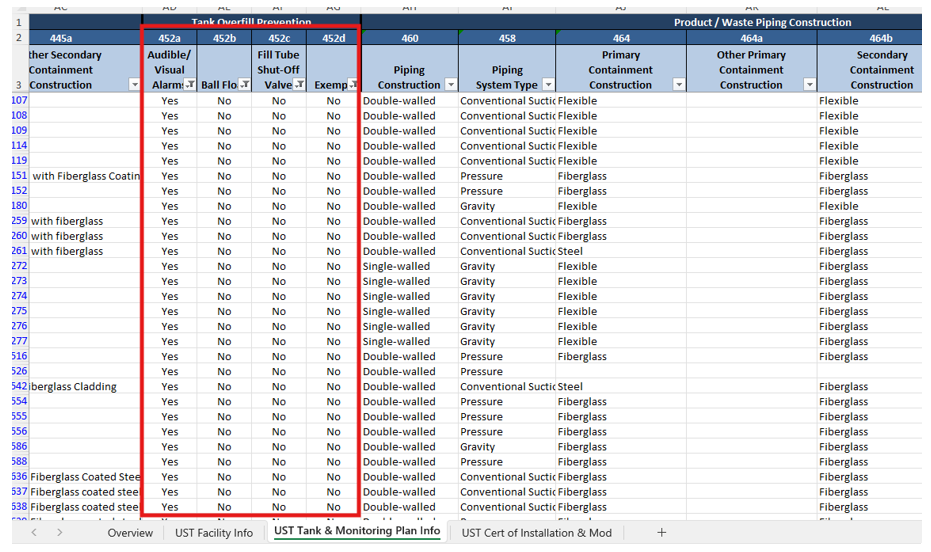

  1. USTs citing Audible/Visual Only Alarm only
    1. 452a: Yes
    2. 452b: No
    3. 452c: No
    4. 452d: No
Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red box highlighting 'Columns 452a named Audible/Visual Alarm, 452b named Ball Float, 452c named Fill Tube Shut-off Valve, and 452 named Exempt'. The data has been filtered to show Audible/Visual with 'Yes', Ball Float with 'No', Fill Tube Shut-off valve with 'No', and Exempt as 'No'

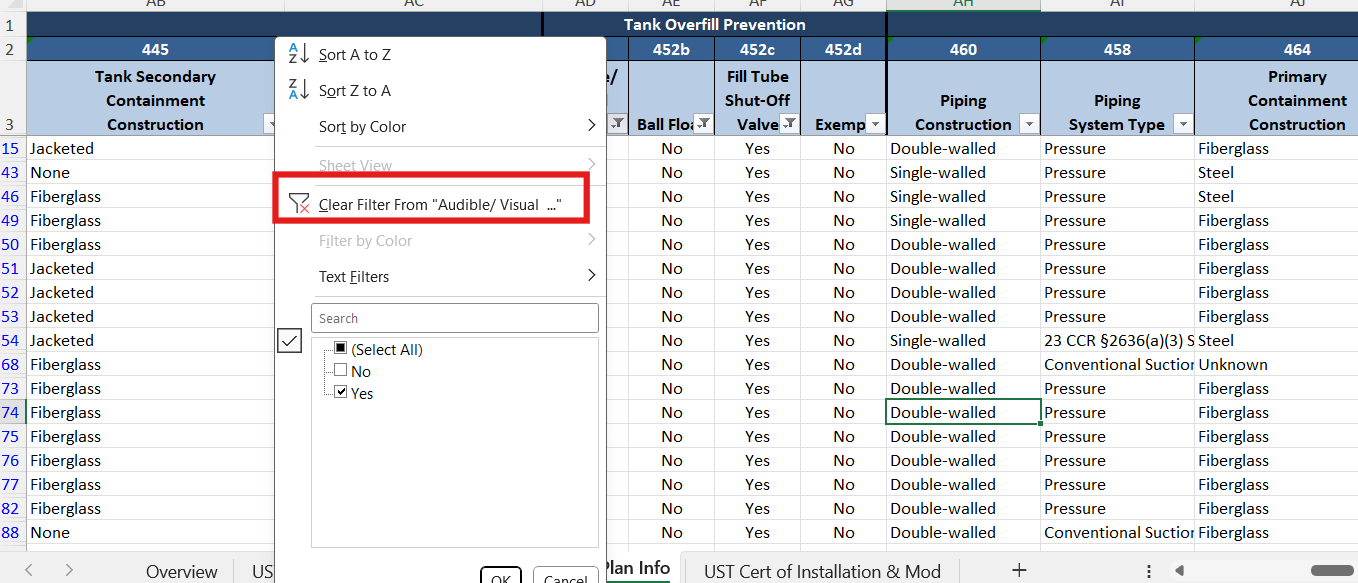

6. Clear filters for columns 452a (Audible/Visual Alarms), 452b (Ball Float), 452c (Fill Tube Shut-Off Valve), 452d (Exempt), 464f (Vent Piping Construction)

  1. Click on the drop-down arrow in the column header
  2. From the drop-down menu, select "Clear Filter from [Column Name]"" (e.g., Audible/Visual, Ball Float, Fill Tube Shut-Off Valve, Exempt)
Screenshot of the 'UST Tank and Monitoring plan Info' tab. A red box highlights the 'Clear Filter from [Column Name]' option, which column 452a (Audible/Visual Alarm) shown as an example.

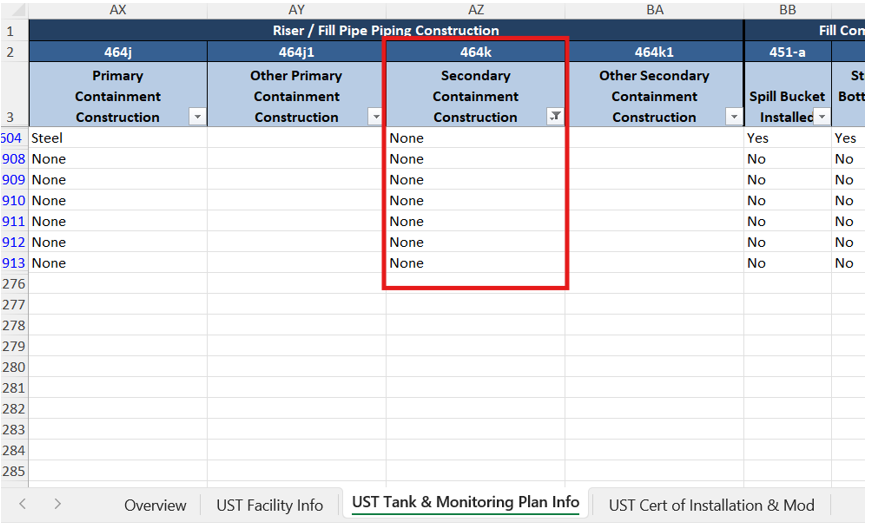

7. Find column 464k (Riser/Fill Pipe Piping Construction) and filter for None. This identifies UST systems with single-walled riser/fill piping.

Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red box highlighting 'Column 464k' named 'Secondary Containment Construction'. The data has been filtered to show column 464k with 'None'

8. Repeat Steps 5 and 6, then proceed to Step 9.

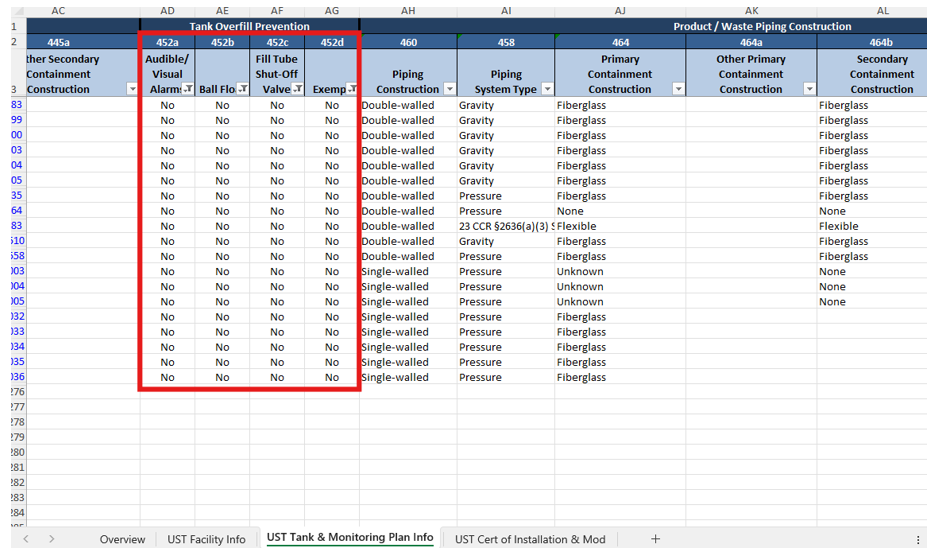

9. Find columns 452a (Audible/Visual Alarms), 452b (Ball Float), 452c (Fill Tube Shut-Off Valve), and 452d (Exempt) and filter for the following

  1. USTs citing 'No' for all OPE including exemption
    1. 452a: No
    2. 452b: No
    3. 452c: No
    4. 452d: No
Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red box highlighting 'Columns 452a named Audible/Visual Alarm, 452b named Ball Float, 452c named Fill Tube Shut-off Valve, and 452 named Exempt'. The data has been filtered to show Audible/Visual with 'No', Ball Float with 'No', Fill Tube Shut-off valve with 'No', and Exempt as 'No'

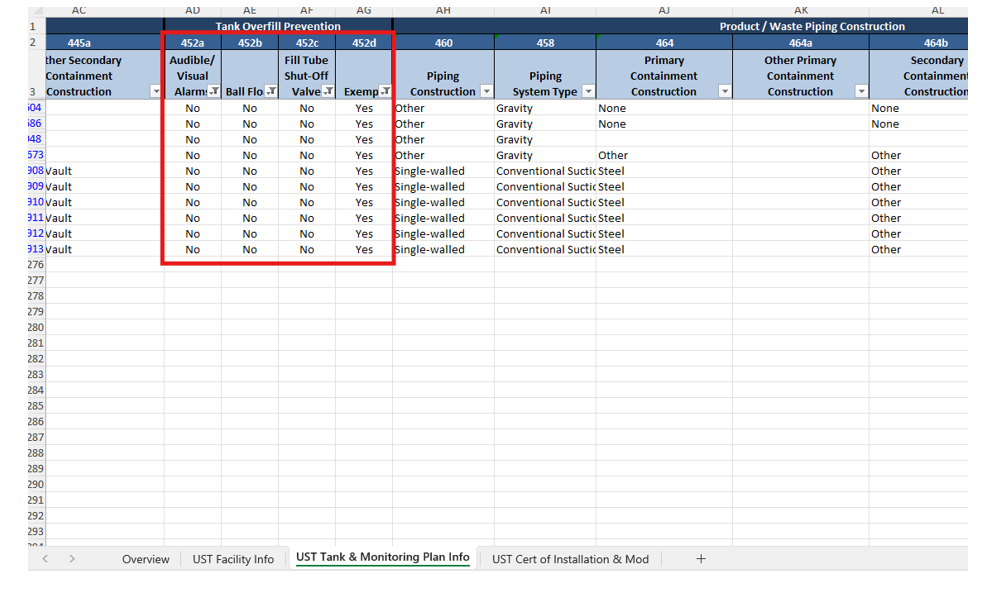

  1. USTs using OPE exemption
    1. 452a: No
    2. 452b: No
    3. 452c: No
    4. 452d: Yes
Screenshot of the 'UST Tank and Monitoring plan Info' tab with a red box highlighting 'Columns 452a named Audible/Visual Alarm, 452b named Ball Float, 452c named Fill Tube Shut-off Valve, and 452 named Exempt'. The data has been filtered to show Audible/Visual with 'No', Ball Float with 'Yes', Fill Tube Shut-off valve with 'No', and Exempt as 'Yes'

The Evaluation Staff will cross reference the USTs in this section with violation and enforcement data to determine if the CUPA consistently cites or requires correction of construction violations.
